P5 Multi Color Led Digital Advertising Display SMD3528 High Brightness

Product Categories
SHENZHEN SOL COLUR DISPLAY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

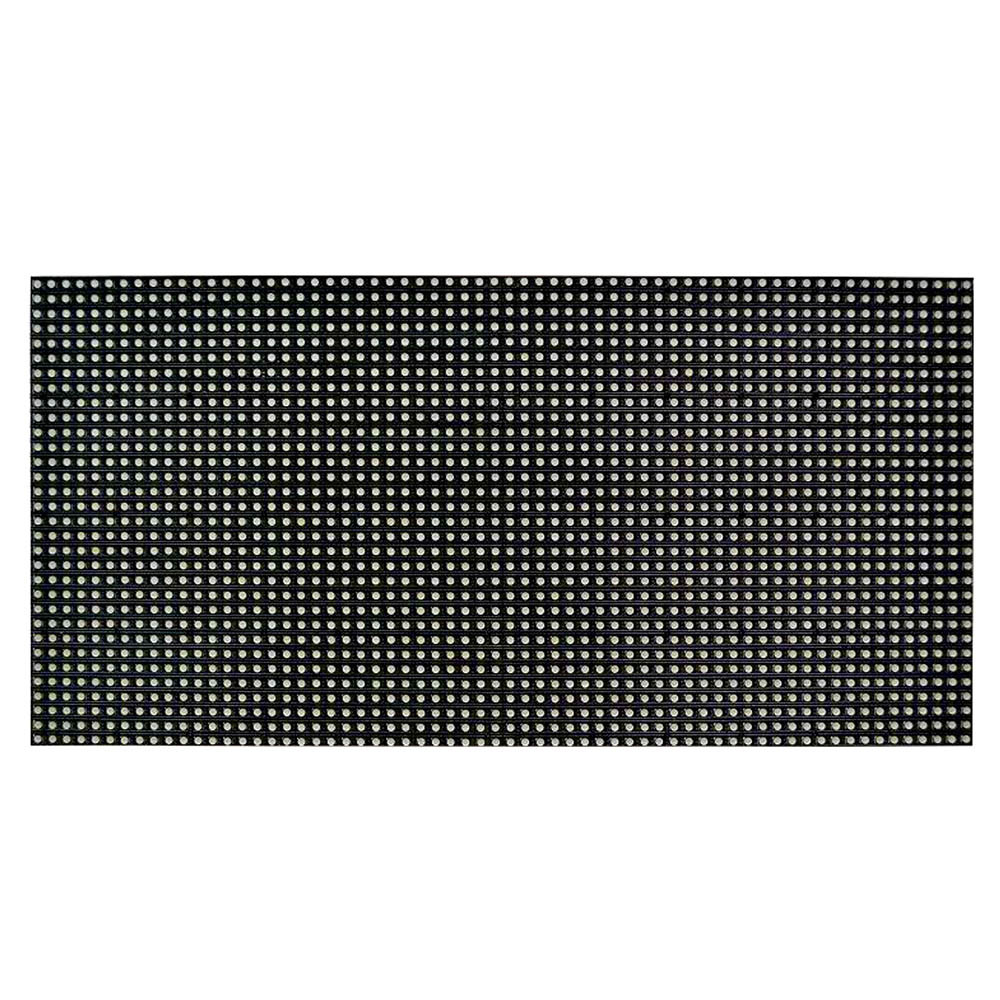

P5 Multi Color Led Digital Advertising Display SMD3528 High Brightness

Brand Name : SC

Model Number : Indoor SMD P5

Certification : CCC IP68 CE

Place of Origin : SHENZHEN CHINA

MOQ : Square Meters / 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5000 Square Meter/Square Meters per Month

Delivery Time : 10 days after received deposit

Packaging Details : Wooden box,Flight Case

Module Size : 320*160mm

Brightness : 900-1100nits

Control Method : Synchronization

Color : 1R1G1B

Module Number : Indoor SMD P5

Led Package : Nationstar SMD 3528

Warranty : 2 years

Pixel resolution : 64dots(W)*32dots(H)

Contact Now

P5 Multi Color Video Digital advertising led display screen SMD3528 High brightness

Product Specification:

NO.: Product name P5 Indoor LED Advertising Display
1 Pixel Pitch(mm) 5mm
2 Pixel configuration 1R1G1B/SMD3528
3 Pixel density 40000dots/m2
4 Brightness 3000cd/m2
5 Module size(W*H) 320*160mm
6 Module Resolution (W*H) 64 dots x 32dots
7 Module weight 600g
8 Cabinet size (W*H) (500mm×500mm)or(500mmx1000mm)
9 Drive IC MBI5124
10 Drive mode 1/8 scan
11 Viewing Angle(V/H) 140 ºC
12 Grey Scale 65536 degree
13 Life time >100,000 Hours (50%)
14 MTBF >50,000 Hours
15 Operating Voltage AC110V/220V±10%
17 Screen Power Consumption Max: 900w/m2; Average:300w/m2
18 Input Power Frequency 50/60Hz
19 Operating temperature -30--60ºC
20 Humidity 10%-95%
21 Refresh Rate ≥1920HZ
22 Control Method Synchronized with computer monitor
23 Color Temperature 6500K-9500K
24 LED control system LINSN,Nova-star,Colorlight is selectable
25 Control Distance 100 m (no repeating); Optical fiber transmission: 500m- 15km
26 Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27 Systems Operating Platform Windows Xp / Windows 7 / windows 8 /8.1 / windows 10


Advantage :

1 . High quality :Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable.


2 . Good effect:To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.


3 . Good uniformity:Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.


4 . Advanced technology:Advanced technology of production ensure the quality and lifetime of LED display; With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.


5 . Diversified display modes:The products support multiple display modes.


6 . Easy operation: The products adopt popular video playing software to facilitate system operations.


7 . Easy maintenance: Easy for maintenance, and can fix the single point to save the maintenance cost.

Project Show:

P5 Multi Color Led Digital Advertising Display SMD3528 High Brightness
